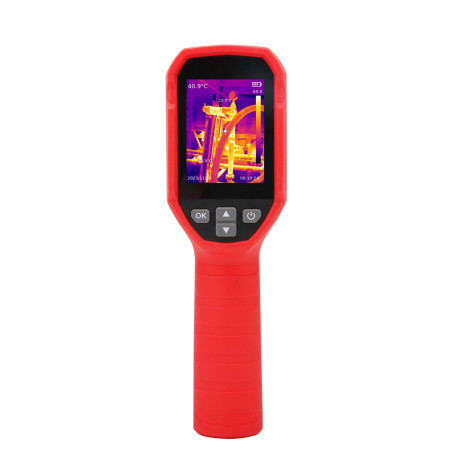

UTi716S Thermal imaging camera, -20 °C to 550 °C, 160 x 120, IP54
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
UTi716S Thermal Imaging Camera - Highlights
- Innovative thermal imaging camera with 12-μm infrared detector
- Thermal image resolution of 160 × 120
- 2 MP digital camera
- Combines a super-resolution function with proprietary T-Mix technology, including an auto-adaptive dual-light fusion algorithm, to generate high-resolution IR images with visible details
- Extended temperature measurement range from -20 °C bis 550 °C
- Integrated LED light and laser pointer
- User-friendly 4-button design
- Compact and lightweight
- Multilingual operating system
- IP54 protection class and resistant to drops from a height of 2 m
- Ideal for DIY enthusiasts, engineers, automotive mechatronics technicians, and craftsmen
- Cost-effective and reliable tool for inspection work in the fields of buildings, automotive, and electronics
- Top quality, complies with all EU standards
- High-quality, safe, and compliant measuring device
- Renowned manufacturer UNI-T
UTi716S Thermal Imaging Camera - Compact, Precise, and Versatile
Features
The UTi716S features a 12-µm infrared detector with a thermal image resolution of 160 × 120 and a 2-MP digital camera for visible details.
A super-resolution function combined with proprietary T-Mix technology and an auto-adaptive dual-light fusion algorithm delivers high-resolution IR images with improved structure recognition.
Measuring range and application
The extended temperature measurement range from −20 °C to 550 °C makes the device suitable for thermography tasks in buildings, vehicles, and electronics.
Ease of use
The user-friendly 4-button design, integrated LED light, and laser pointer enable easy handling and quick orientation during inspections.
A compact, lightweight housing and multilingual operating system support efficient work on site.
Robustness and protection
With IP54 protection and shock resistance from drops of up to 2 meters, the UTi716S is designed for harsh operating conditions.
Areas of application
The device is ideal for DIY enthusiasts, engineers, automotive mechatronics technicians, and craftsmen, and is a cost-effective, reliable tool for inspection work in the building, automotive, and electronics sectors.
Quality and compliance
The UTi716S complies with all relevant EU standards and provides high-quality, safe measurements.
As a product from the renowned manufacturer UNI‑T, the camera combines proven technology with economic availability.
UTi716S Thermal Imaging Camera - Technical Data
- Display: 6.09 cm (2.4") TFT LCD (320 x 240 pixels)
- IR resolution (pixels): 160 x 120
- Super resolution (pixels): 320 x 240
- 12-μm infrared detector
- Temperature measurement range: -20 °C to 550 °C
- Thermal sensitivity: 0.1 °C
- Color palettes: 6 (white hot, black hot, ironbow, lava, rainbow, rainbow HC)
- Image mode: Thermal image, visual image, fusion (T-Mix), PIP
- Digital camera resolution: 2 MP Memory: 32 GB (internal)
- Image storage format: JPG
- 1/4" tripod mounting hole
- Protection class: IP54
- Connections: USB-C
- Power supply: 3.6 V 2600 mAh Li-ion
- Weight: 326 g
- Dimensions (LxWxH): 197x72x60 mm
- Scope of delivery: Thermal imaging camera, USB-A to USB-C cable, instructions
