UTi720E Professional Thermal Imaging Camera -20°C to 550°C, 256×192, USB, Wi-Fi
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
UTi720E Professional Thermal Imaging Camera - Highlights
- Professional thermal imaging camera with Wi-Fi capability
- Large 3.5-inch IPS screen
- 256×192 thermal image resolution
- 2MP visual camera
- Thermal image and digital camera image can be superimposed
- Wide temperature range: -20°C to 550°C
- With replaceable 5200mAh battery
- 2m drop-proof
- IP54 protection class (waterproof, dustproof)
- PC software: analysis and real-time image projection
- With smartphone app
- Fast temperature detection
- With automatic tracking and alerting for high/low spots
- With built-in LED light
- With digital zoom (4x)
- Professional device, ideal for engineers, craftsmen, and testing companies
- Top quality, complies with all EU standards
- High-quality, safe, and compliant measuring device
- Renowned manufacturer UNI-T
UTi720E Professional Thermal Imaging Camera - Powerful, Compliant Measuring Device
Key features

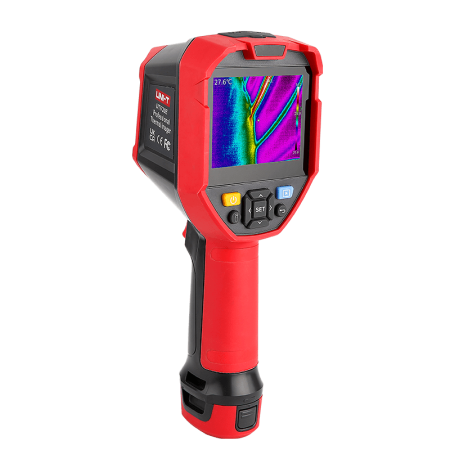

The UTi720E is a professional thermal imaging camera from UNI-T with integrated LED light and 3.5-inch IPS screen. It combines 256×192 thermal imaging resolution with a 2 MP video camera, enabling precise thermal and visual inspections.
Measurement Accuracy & Temperature Range
The device quickly and reliably detects temperatures ranging from -20°C to 550°C. Automatic tracking and alarm functions help you immediately identify high or low hotspots.
Display & Image Fusion
The bright IPS display shows thermal and digital camera images clearly, and an image fusion function allows you to accurately assign thermal anomalies to visible structures.
Connectivity & Software
With integrated Wi-Fi capability, a matching smartphone app, and PC software for analysis and real-time image projection, you can quickly transfer, document, and evaluate measurement data.
Robustness & Battery
The UTi720E is drop-proof from up to 2 m and has an IP54 protection rating. The replaceable 5200 mAh battery ensures long operating times and easy replacement on site.
Areas of application & compliance
As a professional tool, the camera is suitable for engineers, craftsmen, and testing companies for troubleshooting, maintenance, and quality control. The device complies with EU standards and offers you a high-quality, safe, and compliant measurement solution from the renowned manufacturer UNI‑T.
UTi720E Professional Thermal Imaging Camera - Technical Data
- Display: 8.89 cm (3.5") IPS (640x480 pixels)
- IR resolution (pixels): 256x192
- Field of view (FOV): 56° (H) x 42.2° (V)
- Spectral range: 8~14 µm
- Temperature measurement range: -20 °C - 550 °C
- Color palettes: 7 (White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava)
- Image modes: Thermal image, visual image, fusion, PIP
- Screen analyzer: 5 points/1 line/3 rectangles/3 circles
- Image capture Digital camera resolution: 2MP
- Digital zoom: 2x, 4x
- Isotherm (auto/ratio/lower/upper/average/manual)
- LED flashlight
- Wi-Fi connection via mobile app
- QR code - photo management
- PC software: analysis and real-time image projection
- 5200mAh replaceable battery (Type-C rechargeable)
- 1/4" tripod mounting hole
- Memory: Micro SD card (max. 16 GB)
- IP54 2 m drop-proof
- Scope of delivery: UTi720E infrared thermal imaging camera, 5200 mAh Li-ion battery, micro SD card, USB-C cable, user manual
