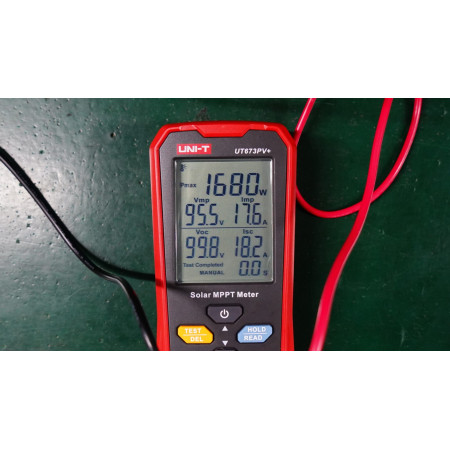

UNI-T UT673PV+ Solar MPPT Meter 2200W with Bluetooth
Main Product FeaturesMaximum power testing (Pmax) from 5W up to 2200W with automatic or manual MPPT trackingMeasures key photovoltaic parameters: Pmax, Vmp, Imp, Voc, and IscDirect MC4 connection for swift, hassle-free testing without extra adaptorsIntegrated Bluetooth connectivity paired with the UNI-T Smart Measure app for automated reporting and live graphsExport test data directly via smartphone in PDF, XLS, JPEG, and CSV formatsLarge 52x66mm LCD displaying multiple measurement results simultaneouslyBuilt-in data storage and data hold capabilities for smooth field documentationMulti-layer protection system: reverse polarity, overvoltage, overcurrent, overtemperature, and overpower safeguardsAdvanced PV Testing and Fault Diagnostics in t
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Main Product Features
- Maximum power testing (Pmax) from 5W up to 2200W with automatic or manual MPPT tracking
- Measures key photovoltaic parameters: Pmax, Vmp, Imp, Voc, and Isc
- Direct MC4 connection for swift, hassle-free testing without extra adaptors
- Integrated Bluetooth connectivity paired with the UNI-T Smart Measure app for automated reporting and live graphs
- Export test data directly via smartphone in PDF, XLS, JPEG, and CSV formats
- Large 52x66mm LCD displaying multiple measurement results simultaneously
- Built-in data storage and data hold capabilities for smooth field documentation
- Multi-layer protection system: reverse polarity, overvoltage, overcurrent, overtemperature, and overpower safeguards
Advanced PV Testing and Fault Diagnostics in the Palm of Your Hand
The UNI-T UT673PV+ is an indispensable diagnostic instrument designed specifically for photovoltaic installers, maintenance engineers, and solar enthusiasts. Identifying underperforming panels, micro-cracks, or assembly defects within a solar array can often be time-consuming and cumbersome. The UT673PV+ addresses these challenges directly by providing rapid, lab-grade performance checks directly on-site. By measuring Maximum Power (Pmax), Peak Power Voltage (Vmp), Peak Power Current (Imp), Open-Circuit Voltage (Voc), and Short-Circuit Current (Isc), users can instantly compare real-time panel performance against manufacturer rating plates.
Streamlined Workflow with Bluetooth and Smart Reporting
Gone are the days of manual pen-and-paper logging on sloped roofs or exposed solar parks. Exclusive to the UT673PV+ model is enhanced Bluetooth functionality communicating seamlessly with the 'UNI-T Smart Measure' app. Technicians can view real-time performance curves, monitor dynamic MPPT sweeps, and compile professional test certificates in minutes. Whether generating client documentation in PDF format or exporting raw data tables as CSV or XLS for detailed analytical audits, the UT673PV+ modernises PV verification from start to finish.
Rugged, Field-Ready, and Safe
Engineered for the demands of outdoor field service, this compact meter features dedicated MC4 terminals that plug straight into solar modules. Built-in protection routines actively defend against common installation hazards, automatically preventing damage from reverse polarity, overload, or excessive operating temperatures. With its bright 52x66mm multi-parameter LCD and battery-powered portable design, field testing remains fast, accurate, and completely dependable.
Technical Specifications
| Parameter | Measurement Range | Accuracy |
|---|---|---|
| Maximum Power (Pmax) | 5W ~ 2200W | ±(1.0% + 10) |
| Peak Power Voltage (Vmp) | 10V ~ 150V | ±(1.5% + 5) |
| Peak Power Current (Imp) | 0A ~ 20A | ±(1.5% + 5) |
| Open-Circuit Voltage (Voc) | 10V ~ 150V | ±(1.5% + 5) |
| Short-Circuit Current (Isc) | 0A ~ 20A | ±(1.5% + 5) |
| Display Type | Large LCD (52 x 66 mm) | - |
| MPPT Testing Modes | Automatic & Manual | - |
| Bluetooth App | UNI-T Smart Measure | - |
| Data Export Formats | PDF, XLS, JPEG, CSV | - |
| Internal Memory | Data Storage & Data Hold | - |
| Integrated Protections | Reverse polarity, overvoltage, overcurrent, overtemperature, overpower | - |
| Power Supply | 3x 1.5V AAA batteries | - |
| Dimensions | 169 x 81 x 46 mm | - |
| Product Colour | Red + Black | - |
| Included Accessories | MC4 test leads, MC4 connector wrench | - |
Frequently Asked Questions
What are the primary differences between the UT673PV and UT673PV+?
The UT673PV+ offers a significantly broader measurement range of up to 2200W and 150V (compared to 800W and 60V on the standard UT673PV). In addition, the UT673PV+ exclusively incorporates Bluetooth connectivity, internal data storage, and integration with the UNI-T Smart Measure mobile app.
Can I connect the meter directly to a solar panel without adapters?
Yes. The UT673PV+ is equipped with standard MC4-compatible solar panel connectors, enabling direct attachment to solar panels without requiring external adapters.
How are test reports created and shared using the device?
By pairing the meter via Bluetooth with a mobile device running the UNI-T Smart Measure app, test results and real-time diagrams can be saved and instantly exported as PDF reports, XLS spreadsheets, CSV data sheets, or JPEG images.
What safeguards does the UT673PV+ offer against accidental incorrect connection?
The instrument features extensive built-in protective circuitry, including reverse polarity protection, overpower protection, overvoltage protection, overcurrent protection, and overtemperature protection.
What batteries does the UT673PV+ require for operation?
The unit is powered by three standard 1.5V AAA batteries, ensuring straightforward power replacement during outdoor servicing.
