MJ15022G
TO-3 NPN, 200V, 16A, 4MHz, 250W, 60 hFE
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
MJ15022G - BJT (Bipolar Junction Transistor)
High-power NPN silicon transistor designed for audio amplifier output stages, switching regulators, and general-purpose amplifier applications. Part of the complementary pair with MJ15023G (PNP).
📊 Absolute Maximum Ratings
- Collector-Base Voltage (Vcb): 200V V
- Collector-Emitter Voltage (Vce): 200V V
- Emitter-Base Voltage (Veb): 5V V
- Maximum Collector Current (Ic): 16A
- Power Dissipation (Pc): 250W
- Maximum Junction Temperature (Tj): 200°C °C
⚡ Electrical Characteristics
- DC Current Gain (hFE min): 15-60 (depending on current)
- Transition Frequency (ft): 4 MHz (typical)
- Collector Capacitance (Cc): 500 pF (typical) pF
📦 Package

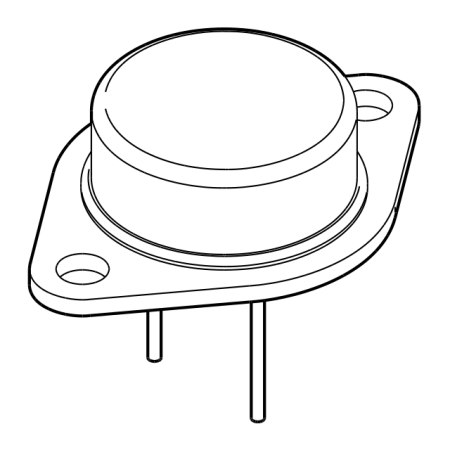

Case Style: TO-3 (metal can)
ℹ️ General Information
- Material: Si (Silicon)
- Polarity: NPN
💡 Technical data extracted from manufacturer documentation. Always verify specific datasheets from your manufacturer for critical applications.
