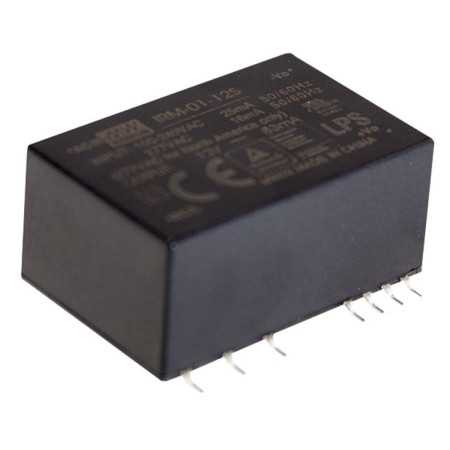

Meanwell IRM-01 Miniature Power Supply Series Description:

IRM-01 is a 1W miniature (33.7*22.2*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. The power supply allows a universal input voltage range of 85~305VAC. The phenolic case and the fully-potted silicone enhance the heat dissipation and fulfil anti-vibration requirements of up to 5G. In addition, the case provides resistance to dust and moisture. With a high efficiency of up to 77% and the extremely low no-load power consumption below 0.075W, the IRM-01 series corresponds to the worldwide regulation of low power consumption for electronics. The entire series fulfils the Class Il design (no FGpin) requirements, incorporating built-in EMI filtering components, which in turn enable the compliance with the EN55032 Class B standard. Due to the series' supreme EMC capabilities, the final electronic units/products will be kept from electromagnetic interference. In addition to the module-type model, the IRM-01 series is also available as a SMD model.

Meanwell IRM-01 Miniature Power Supply Series Features:

  • Closed design, PCB mounting
  • Universal input
  • Power consumption at no load<0.075W
  • Compact size
  • Protected against short circuit, overload and overvoltage
  • Cooling by free air convection
  • Low standby power consumption
  • Insulation class II
  • Safety standards: UL/EN62368-1
  • EMC Standard: EN55032 Class B
  • High reliability, low cost
  • 3 years manufacturer warranty
  • IRM-01: wired
  • IRM-01S: SMD
For detailed technical specifications, please check the data sheet in the "downloads" section.
MEAN WELL
IRM-01-9S
255 Items
4021087034753
IRM-01-9S
