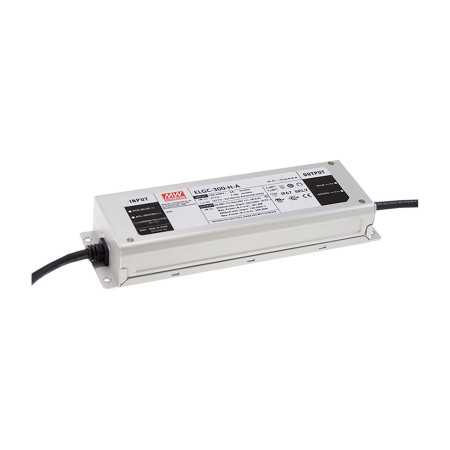

ELGC-300-H-ADA Led driver, IP67 301W, 29-58V, 5200-8000mA CP DA, MEAN WELL

ELGC-300-H-ADA Led driver, IP67 301W, 29-58V, 5200-8000mA CP DA, MEAN WELL

€81.85 Tax included

€81.85 Tax excluded

check 14


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

Meanwell ELGC-300 LED Switching Power Supply Series Description:

The ELGC-300 series consists of 300W AC/DC LED drivers with a dual mode output for constant current and voltage. The ELGC-300 series is suitable for 100~305VAC operation and offers models with various output currents between 1300mA and 8000mA. The models offer high efficiency of up to 94.5% and can operate in a temperature range of -40°C ~ +85°C thanks to fanless cooling by free air convection. Thanks to the metal housing and IP67 protection, the series is suitable for both indoor and outdoor applications.

Meanwell ELGC-300 LED Switching Power Supply Series  Features:

  • Constant power
  • Independent power supply
  • Metal housing with functional grounding
  • Wide range input
  • IP67/65 certification for indoor or outdoor installation
  • Power consumption without load / standby <0.5W
  • overload protection by current limiting, auto recovery
  • protected against short circuit, overload, overvoltage, overtemperature
  • Very long lifetime > 50000 hours
  • Built-in PFC circuit
  • Suitable for LED lighting applications
  • SELV Compliant (ELGC-300-Hand ELGC-300-M-)
  • Safety standards: EN61347-1, EN61347-2-13 and others.
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
  • Conforms to 6kV Surge Immunity Level
  • ELGC-300-A: IP67, constant current adjustable via internal potentiometer, not dimmable
  • ELGC-300-AB: IP67, current limit adjustable via internal potentiometer on the bottom side of the housing, dimming via lead out control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
  • ELGC-300-ADA: IP67, DALI interface, current limitation adjustable via internal potentiometer

Meanwell ELGC-300 LED Switching Power Supply Series  Application:

  • LED street lighting
  • LED building lighting
  • LED hall lighting
  • LED floodlighting
For detailed technical specifications, please check the data sheet in the "downloads" section.
