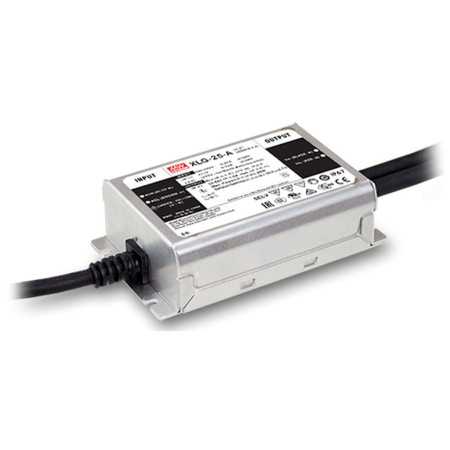

XLG-25-A Led driver, IP67 25W, 22-54V, 0.25-1.05A CP, MEAN WELL


Advertising [AfterProductThumbs]

New

XLG-25-A Led driver, IP67 25W, 22-54V, 0.25-1.05A CP, MEAN WELL

XLG-25-A Led driver, IP67 25W, 22-54V, 0.25-1.05A CP, MEAN WELL

€17.10 Tax included

€17.10 Tax excluded

check 152


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL XLG-25 LED Driver Series Description:

XLG-25 series consists of 25W LED AC/DC drivers with constant power mode. The series can be operated with 100~305VAC. Thanks to the high efficiency (up to 88%) and fanless design, the whole series can be operated at an enclosure temperature of -40°C~+85°C under free air convection. Thanks to the metal enclosure and IP67 protection, the XLG-25 series is suitable for both indoor and outdoor applications. The XLG-25 series complies with the latest version of international safety regulations 1EC61347/GB7000.1-2015 and UL8750. The output and dimming circuit also fully complies with the new regulations and is isolated to ensure user safety during installation.

MEAN WELL XLG-25 LED Driver Series Features:

  • Constant power
  • independent operating unit
  • Wide range input
  • Metal housing
  • overload protection by current limiting, auto recovery
  • protected against short circuit, overload, overvoltage, overtemperature
  • built-in PFC circuit
  • low no-load power
  • suitable for LED lighting applications
  • SELV compliant
  • Safety standards: EN61347-1, EN61347-2-13, EN62384 and others
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
  • Surge Immunity Level 6kV
  • 5 years manufacturer warranty
  • XLG-25_A: IP67, current limit adjustable via internal potentiometer, not dimmable
  • XLG-25_AB: IP67, current limitation adjustable via internal potentiometer, dimming via implemented control line, 3 in 1 dimming function (0...10V DC, 10V PWM, potentiometer)

MEAN WELL XLG-25 LED Driver Series Application Examples:

  • Street lighting
  • Floodlighting applications
  • Billboard lighting
  • Stage lighting
  • Hall lighting

Note:

For detailed technical data, please refer to the data sheet in the "Downloads" section.
