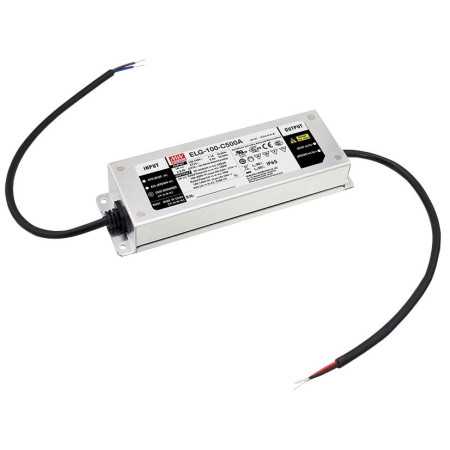

ELG-100-C500A-3Y Led driver, IP65 100W, 100-200V, 500mA CC + PE, MEAN WELL
zoom_out_map
chevron_left chevron_right


Advertising [AfterProductThumbs]

New

ELG-100-C500A-3Y Led driver, IP65 100W, 100-200V, 500mA CC + PE, MEAN WELL

ELG-100-C500A-3Y Led driver, IP65 100W, 100-200V, 500mA CC + PE, MEAN WELL

€35.08 Tax included

€35.08 Tax excluded

check 14


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL ELG-100-C LED Driver Series Description:

The ELG-100-C Series of LED Drivers is a constant current output driver that can be used as an independent power supply. It has a metal housing with functional grounding, and is certified for indoor or outdoor installation due to its IP65/67 certification. This product series consumes <0.5W of power without load or standby, and has overload protection by current limiting (auto recovery function). It is also protected against short circuit, overload, overvoltage, and overtemperature. This product series has a very long lifetime > 50000 hours, and includes a built-in PFC circuit. It is suitable for LED lighting applications, and is SELV Compliant. Additionally, the MEAN WELL ELG-100-C series meets various safety and EMC standards.

MEAN WELL ELG-100-C LED Driver Series Features:

  • Constant current output
  • Independent power supply
  • Metal housing with functional grounding
  • Wide range input
  • IP67/65 certification for indoor or outdoor installation
  • Power consumption without load / standby <0.5W
  • Overload protection by current limiting, auto recovery
  • protected against short circuit, overload, overvoltage, overtemperature
  • Very long lifetime > 50000 hours
  • Built-in PFC circuit
  • Suitable for LED lighting applications
  • SELV Compliant
  • Safety standards: EN61347-1, EN61347-2-13 and others
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
  • Complies with 6kV Surge Immunity Level
  • ELG-100: IP67, voltage and current fixed, not dimmable
  • ELG-100-A: IP65, output voltage and current limit adjustable via internal potentiometer on bottom of housing, not dimmable
  • ELG-100-B: IP67, dimming via control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
  • ELG-100-AB: IP65, output voltage and current limitation adjustable via internal potentiometer on bottom side of housing, dimming via integrated control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
  • ELG-100-DA: IP67, DALI interface
  • ELG-100-3Y: protective conductor integrated in the primary cable

MEAN WELL ELG-100-C LED Driver Series Application Examples:

  • LED street lighting
  • LED building lighting
  • LED hall lighting
  • LED floodlighting
  • LED Advertising Signs

Notice:

Power supply for the operation of LED light sources.
For detailed technical specifications, please check the data sheet in the "downloads" section.
MEAN WELL
ELG-100-C500A-3Y
14 Items
4021087045940
ELG-100-C500A-3Y
