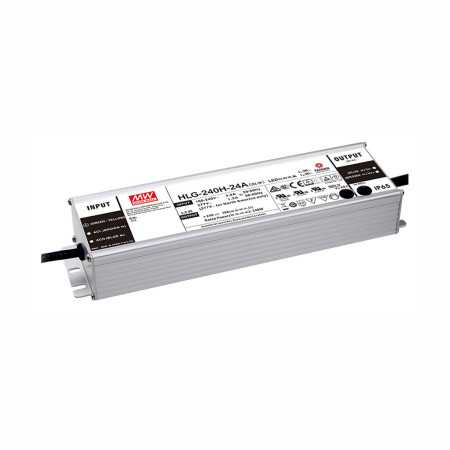

MEAN WELL HLG-240H LED Driver Series Description:

The HLG-240H series consists of 240W AC/DC LED drivers with a dual-mode constant voltage and constant current output. The HLG-240H series can be operated at 90 ~ 305VAC and offers models with various rated voltages, ranging from 12V to 54V. With a high efficiency of up to 94% and a fanless design, the entire series can operate at an enclosure temperature of -40°C ~ +90°C under free air convection. With a metal housing and IP67/IP65 protection, the series is suitable for both indoor and outdoor applications.

MEAN WELL HLG-240H LED Driver Series Features:

  • constant current and constant voltage output
  • independent power supply
  • wide range input
  • metal housing
  • overload protection by current limiting, auto recovery
  • protected against short circuit, overload, overvoltage, overtemperature
  • built-in PFC circuit
  • for LED lighting applications
  • SELV Compliant
  • Safety standards: EN61347-1, EN61347-2-13 and others
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
  • 7 years manufacturer warranty
  • HLG-240H-_: IP67, voltage and current fixed, not dimmable
  • HLG-240H_A: IP65, output voltage and current limitation adjustable via internal potentiometer, not dimmable
  • HLG-240H_B: IP67, dimming via implemented control line, 3 in 1 dimming function (1...10V DC, PWM, 100k Ohm potentiometer)
  • HLG-240H_AB: IP65, output voltage and current limitation adjustable via internal potentiometer, dimming via implemented control line, 3 in 1 dimming function (1...10V DC, PWM, 100k Ohm potentiometer)

Application Examples:

  • LED street lighting
  • LED high bay lighting
  • LED hall lighting

Notice:

Power supply for the operation of LED light sources.
This product is not designed for operation in no-load status.
For detailed technical specifications, please check the data sheet in the "downloads" section.
