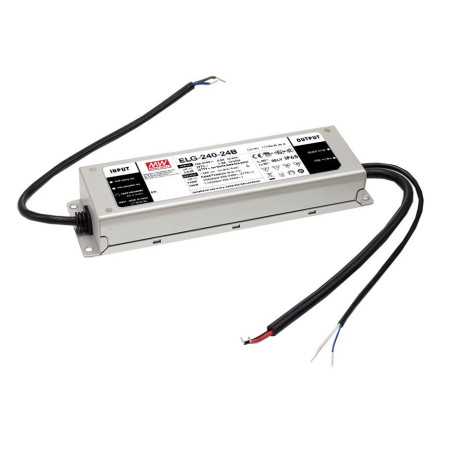

ELG-240-42D2-3Y Led driver, IP67 239,82W, 42V, 5,71A CV+CC D2 + PE, MEAN WELL
zoom_out_map
chevron_left chevron_right


Advertising [AfterProductThumbs]

ELG-240-42D2-3Y Led driver, IP67 239,82W, 42V, 5,71A CV+CC D2 + PE, MEAN WELL

ELG-240-42D2-3Y Led driver, IP67 239,82W, 42V, 5,71A CV+CC D2 + PE, MEAN WELL

€62.88 Tax included

€62.88 Tax excluded


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL ELG-240 Series Description:

ELG-240 series consists of 240W AC/DC LED drivers featuring a dual mode constant voltage and constant current output. The ELG-240 series operates at 100~305VAC input voltage and offers models with different rated output voltage ranging between 12V and 54V. The models offer high efficiency up to 93% and can operate at a temperature range of -40°C ~ +90°C thanks to fanless cooling through free air convection. Due to its metal housing and IP67/65 ingress protection level, the series is suiatable for both indoor and outdoor applications.

MEAN WELL ELG-240 Series Features:

  • Constant current and constant voltage
  • Independent control unit
  • Metal case with functional grounding
  • Wide range input
  • IP67/65 certification for indoor or outdoor installation
  • Power consumption without load / standby <0.5W
  • Overload protection by current limiting, auto recovery
  • Protected against short circuit, overload, overvoltage, overtemperature
  • Very long lifetime > 50000 hours
  • Built-in PFC circuit
  • Suitable for LED lighting applications
  • SELV Compliant
  • Safety standards: EN61347-1, EN61347-2-13 and others
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
  • Complies with 6kV Surge Immunity Level
  • ELG-240-3Y: protective conductor integrated in the primary cable, worldwide certified connection cable.
  • ELG-240: IP67, voltage and current fixed preset, not dimmable
  • ELG-240-A: IP65, output voltage and current limitation adjustable via internal potentiometer on bottom of housing, not dimmable
  • ELG-240-B: IP67, dimming via control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
  • ELG-240-AB: IP65, output voltage and current limitation adjustable via internal potentiometer on bottom side of housing, dimming via integrated control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
  • ELG-240-DA: IP67, DALI interface
  • ELG-240-D2: IP67, built-in smart timer dimming function and programmable output characteristics, non-dimmable

MEAN WELL ELG-240 LED Driver Series Application Examples:

  • LED street lighting
  • LED building lighting
  • LED hall lighting
  • LED floodlighting
Notice:
Power supply for the operation of LED light sources.
For detailed technical specifications, please check the data sheet in the "downloads" section.
MEAN WELL
ELG-240-42D2-3Y
4021087045377
ELG-240-42D2-3Y
