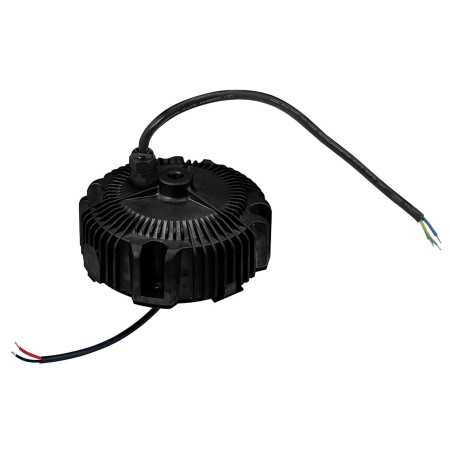

HBG-160-48DA Led driver, IP67 158,4W, 48V, 3,3A CV+CC DALI, MEAN WELL
zoom_out_map
chevron_left chevron_right


Advertising [AfterProductThumbs]

HBG-160-48DA Led driver, IP67 158,4W, 48V, 3,3A CV+CC DALI, MEAN WELL

HBG-160-48DA Led driver, IP67 158,4W, 48V, 3,3A CV+CC DALI, MEAN WELL

€62.96 Tax included

€62.96 Tax excluded

check 7


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

Meanwell HBG-160 LED Driver Series Description:

HBG-160 series consists of 160W AC/DC LED drivers with a circular design. The models operate with an input voltage of 90~305VAC and have a constant current output, while offering various output voltages between 24V and 60V. The LED drivers are highly efficient (up to 93.5% efficiency) and can operate within 40°C ~ +85°C using free air convection cooling (fanless design). With metal housing and IP67/IP65 certification, the LED models are suitable for indoor and outdoor applications.

Meanwell HBG-160 LED Driver Series Features:

  • Constant current and constant voltage
  • Independent control gear
  • Round design, potted metal housing
  • Wide range input
  • IP67 / P65 certification for indoor and outdoor installation
  • Overload protection by current limiting, auto recovery
  • Protected against short circuit, overload, overvoltage, overtemperature
  • Very long lifetime > 50000 hours
  • Built-in PFC circuit
  • Suitable for LED lighting applications
  • SELV Compliant
  • Safety standards: 61347-1, EN61347-2-13 and others
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
  • HBG-160: IP67, current fixed, not dimmable
  • HBG-160-A: IP65, current limit adjustable via internal potentiometer, not dimmable
  • HBG-160-B: IP67, dimming via integrated control line, 3 in 1 dimming function (1...10V DC, PWM, 100k Ohm potentiometer)
  • HBG-160-AB: IP65, current limitation adjustable via internal potentiometer, dimming via integrated control line, 3 in 1 dimming function (1...10V DC, PWM, 100k Ohm potentiometer)
  • HBG-160-DA: IP67, DALI interface

Meanwell HBG-160 LED Driver Series Application examples:

  • LED store lighting
  • LED stage lighting
  • LED spot lighting

Notice:

Power supply for the operation of LED light sources. This product is not designed for operation in no-load status.
For detailed technical specifications, please check the data sheet in the "downloads" section.
