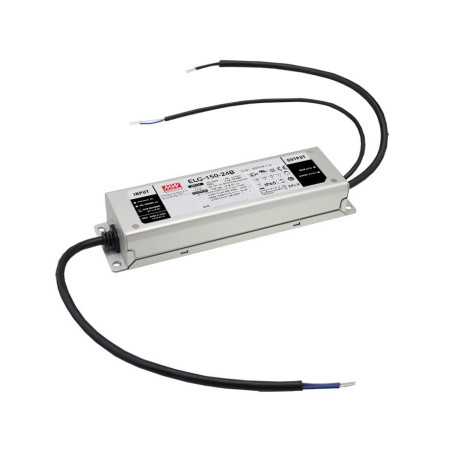

ELG-150-48DA-3Y Led driver, IP67 150W, 48V, 3.13A CV+CC DALI + PE, MEAN WELL
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
MEAN WELL ELG-150 LED Driver Series Description:
MEAN WELL ELG-150 LED Driver Series Features:
- Constant current and constant voltage
- Independent control unit
- Metal case with functional grounding
- Wide range input
- IP67/65 certification for indoor or outdoor installation
- Power consumption without load / standby <0.5W
- Overload protection by current limiting, auto recovery
- Protected against short circuit, overload, overvoltage, overtemperature
- Very long lifetime > 50000 hours
- Built-in PFC circuit
- Suitable for LED lighting applications
- SELV Compliant
- Safety standards: EN61347-1, EN61347-2-13 and others
- EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
- Complies with 6kV Surge Immunity Level
- ELG-150-3Y: protective conductor integrated in the primary cable.
- ELG-150: IP67, voltage and current fixed preset, not dimmable
- ELG-150-A: IP65, output voltage and current limitation adjustable via internal potentiometer on bottom of housing, not dimmable
- ELG-150-B: IP67, dimming via control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
- ELG-150-AB: IP65, output voltage and current limitation adjustable via internal potentiometer on bottom side of housing, dimming via outgoing control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
- ELG-150-DA: IP67, DALI interface
MEAN WELL ELG-150 LED Driver Series Application Examples:
- LED street lighting
- LED building lighting
- LED hall lighting
- LED floodlighting
