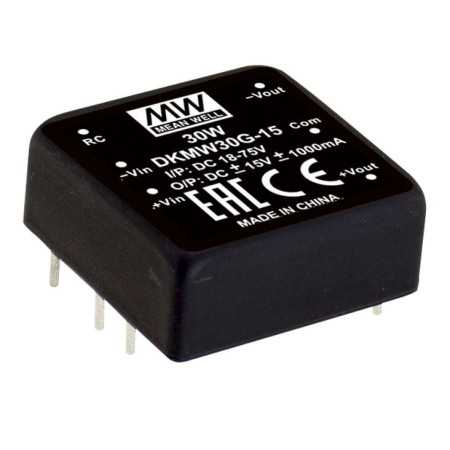

DKMW30G-15 DC/DC Converter 18-75V:+/-15V 1A 30W, MEAN WELL
zoom_out_map
chevron_left chevron_right

DKMW30G-15 DC/DC Converter 18-75V:+/-15V 1A 30W, MEAN WELL

DKMW30G-15 DC/DC Converter 18-75V:+/-15V 1A 30W, MEAN WELL

€33.40

€33.40 Tax excluded

check 30

local_shipping FREE SHIPPING  Belgium-France-Nederland-Germany on ALL PRODUCTS  for 125 € order

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL DKMW30 Series Description:

The DKMW30 series features 30W isolated and regulated modular DC-DC converters in a DIP 1"x1" case. They have international standard pins, offer high efficiency (up to 90%), wide operating temperature range (-40~+85°C), isolation voltage of 1.5KVDC I/P-O/P, conformity to BS EN/EN55032 (radiation protection class A without additional components), protection against short circuit in continuous mode, overload, overtemperature, undervoltage, and remote on/off and trimmable output voltage. The models can work with different input voltages (9~36V and 18~75V 4:1 wide input range) and allow different output voltages (3.3V/5V/9V/12V/15V for single output and ±12V/±15V for dual output). Therefore, the products are suitable for various systems and applications, such as industrial control, telecommunications, distributed power supply architectures, and more.

MEAN WELL DKMW30 Series Features:

  • DIP1"x1" case with industry standard pinout.
  • Input voltage range 4:1
  • Suitable for direct PCB mounting
  • Operating temperature range -40 ~ +85°C
  • No minimum load required
  • Isolation input/output 1500V DC
  • Protection: short circuit (continuous), overload, input undervoltage, overvoltage
  • Remote ON/OFF control
  • EMC standards: EN55032 Class A
  • High efficiency up to 90%
MEAN WELL
DKMW30G-15
30 Items
4021087046565
DKMW30G-15
