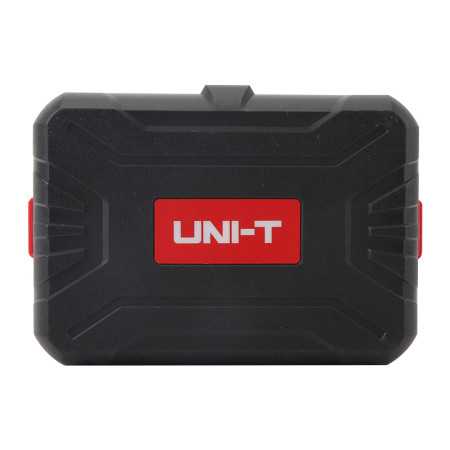

UT503PV Insulation Resistance Tester for Solar Applications, Photovoltaics
UT503PV Insulation Resistance Tester – Highlights
- Measures insulation resistance of PV systems under voltage and without voltage
- Automatic detection of AC/DC voltages
- Time measurement and comparison function (IR)
- High voltage alarm and automatic discharge
- IP54 protection class
- Up to 1000 measurements can be stored
- Data communication via USB cable and Bluetooth app
- High output voltage: DC 1000 V
- Test under voltage: DC 1000 V
- Insulation resistance (PV+IR): 4000 MΩ
- Voltage measurement: 1000 V DC and 600 V AC
-
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
UT503PV Insulation Resistance Tester – Highlights
- Measures insulation resistance of PV systems under voltage and without voltage
- Automatic detection of AC/DC voltages
- Time measurement and comparison function (IR)
- High voltage alarm and automatic discharge
- IP54 protection class
- Up to 1000 measurements can be stored
- Data communication via USB cable and Bluetooth app
- High output voltage: DC 1000 V
- Test under voltage: DC 1000 V
- Insulation resistance (PV+IR): 4000 MΩ
- Voltage measurement: 1000 V DC and 600 V AC
- Self-discharge function
- Step-by-step voltage increase
- Automatic and manual backlighting
- Suitable for professional users
- Top quality, complies with all EU standards
- High-quality, safe, and compliant measuring device
- Renowned manufacturer UNI-T
UT503PV Insulation Resistance Tester – Reliable testing for PV systems
Powerful measurement functions
The UT503PV measures the insulation resistance of photovoltaic systems under voltage and without voltage, offering a high output voltage of DC 1000 V. Thanks to automatic detection of AC and DC voltages, you can flexibly switch between voltage measurement (up to 1000 V DC and 600 V AC) and insulation testing.
Intelligent safety and protection
An integrated high-voltage alarm and automatic discharge ensure maximum user protection after every measurement. Protection class IP54 guarantees use in harsh conditions, while the step-by-step voltage increase protects mechanical and electrical components.
Extensive measurement and storage capacity
With the comparison function for insulation resistance (IR) and a time measurement, you can quickly detect deviations. Up to 1000 measurement results are stored in the device, so you can access measurement reports at any time without PC access.
Data communication and ease of use
Your measurement data can be transferred either via USB cable or wirelessly via Bluetooth app. Automatic and manual backlighting makes it easy to read in poor lighting conditions, and the compact design supports mobile use.
EU compliance and professional quality
As a high-quality and safe measuring device, the UT503PV complies with all relevant EU standards. The renowned manufacturer UNI-T stands for durable technology and precise measurement technology – ideal for professional users in the field of photovoltaics and electrical installation.
UT503PV Insulation Resistance Tester – Technical Data
- Insulation resistance (125 V-1000 V): 4GΩ
- PV insulation resistance (500 V-1000 V): 4GΩ
- DC voltage: 5...1000 V
- AC voltage: 5...600 V
- Short-circuit current: IR <1.5mA, PV IR <1.2mA
- Power supply: 6x AA batteries (included)
- Protection class: IP54
- Safety: CAT II 1000 V, CAT III 600 V
- Weight: 0.5 kg
- Dimensions: 161x117.3x63 mm
For further details, please refer to the data sheet in the download area.
