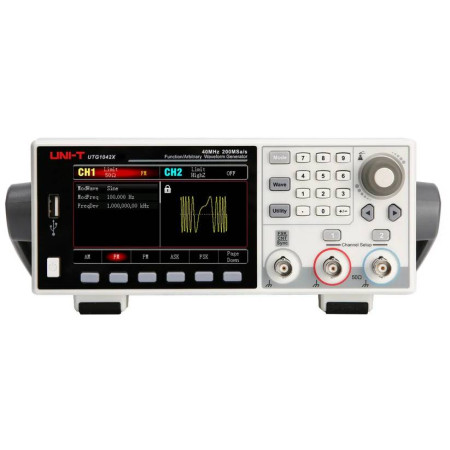

UNI-T UTG1042X Arbitrary Waveform Generator - 2-Channel, 40MHz, 16-Bit

Main Produkt-Features

• Superior 16-Bit Resolution: Generates signals with 65,536 amplitude levels for unmatched accuracy and minimal distortion.
• Flexible 40 MHz Bandwidth: Delivers sine waves up to 40 MHz and square/pulse waves up to 20 MHz for versatile applications.
• Dual-Channel Operation: Two fully functional, independent channels for complex stimulus-response testing.
• High Sampling Rate of 200 MSa/s: Ensures an exact reproduction of waveforms without staircase effects.
• Comprehensive Modulation Options: Includes 7 analog and digital modulation types (AM, FM, PM, ASK, FSK, PSK, PWM).
• Large Waveform Library: Access to 200 built-in waveforms covering common, mathematical, and engineering signal types.
• Integrated Frequency Counter: Measures external frequencies from 100 mHz to 200 MHz, saving the cost and space of a separate instrument.
• Sweep & Burst Modes: Enables linear and logarithmic frequency sweeps, as well as triggered burst signals for advanced testing.

Precision You Can See and Measure: The UNI-T UTG1042X

Enter the world of professional signal generation with the UNI-T UTG1042X. This arbitrary waveform generator is designed to bridge the gap between affordable entry-level devices and expensive high-end solutions. It offers an outstanding 16-bit resolution, previously unheard of in this price range, providing you with the signal quality you need for precise development, testing, and educational applications.

The 16-Bit Revolution in the Essential-Series

While most generators in this segment rely on 14-bit technology with 16,384 amplitude levels, the UTG1042X raises the bar significantly with its 16-bit architecture. With 65,536 levels—a fourfold improvement—it drastically reduces quantization noise and significantly improves signal purity. The result is smoother, more accurate waveforms, free from the artifacts common in lower-resolution instruments. Combined with a 200 MSa/s sample rate, even at the maximum frequency of 40 MHz, signals are output precisely and without unsightly staircase approximations.

Equipped for Every Application – Safe and Compliant

Whether in the electronics lab, for education, during prototype development, or in service—the UTG1042X is a versatile partner. Its two independent channels can provide stimulus and clock signals for complex circuits. Use the sweep functions to easily characterize the frequency response of filters and amplifiers, while the burst mode simulates intermittent signals. Crucially, you can be confident that the UTG1042X is a safe product that complies with all relevant EU standards, ensuring the highest levels of safety and quality. The intuitive operation via the 4.3-inch TFT display and SCPI programmability over USB complete the package, making it the ideal tool for professionals and ambitious hobbyists alike.

Technical Specifications

Frequently Asked Questions (FAQ)

What's the difference between the UTG1000X and more expensive models like the UTG2000 series?

The UTG1042X delivers the same professional 16-bit resolution but focuses on essential features. The UTG2000 series adds higher sample rates, deeper waveform memory, more modulation types, and advanced functions like harmonic generation, which are needed for more specialized applications.

What's included with the UTG1042X?

The instrument ships with a power cable, a USB cable, and the standard manufacturer's warranty. The PC software and user manual are available for download from the UNI-T website.

Is this device certified and safe for use in Europe?

Yes, absolutely. The UTG1042X has been tested for conformity with applicable EU standards. It is a safe and reliable instrument for professional and educational use.

Can I create and upload my own custom waveforms?

Yes, you can create custom waveforms up to 4,096 points (4 kpts) in length and upload them to the generator via the USB interface and the provided software.
