UNI-T UTG2062B Arbitrary Waveform Generator - 16-Bit, 60 MHz, 320 MSa/
zoom_out_map
chevron_left chevron_right
New

UNI-T UTG2062B Arbitrary Waveform Generator - 16-Bit, 60 MHz, 320 MSa/s, 2 Channels

€268.29 vat included 21%

--

local_shipping FREE SHIPPING  Belgium-France-Nederland-Germany on ALL PRODUCTS  for 125 € order

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
  • 16-Bit Resolution for precise signal generation with 4x more amplitude levels than 14-bit generators.
  • 60 MHz Sine Wave Output and 2 channels for versatile lab and testing applications.
  • 320 MSa/s Sampling Rate and 16 Mpts memory for detailed reproduction of complex waveforms.
  • 13 Modulation Types including AM, FM, PM, PWM, FSK, PSK & QAM for comprehensive communications testing.
  • Expression Output for direct generation of mathematically defined waveforms (Vout = f(x)).

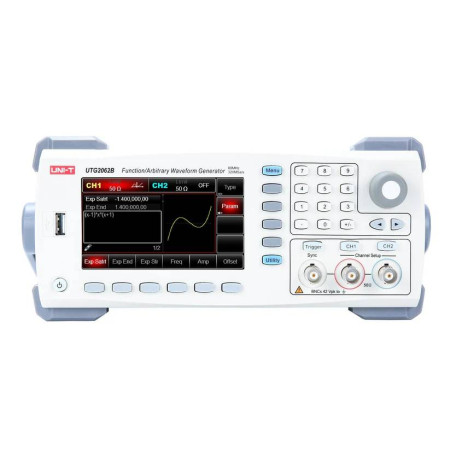

Precision That Inspires: The UNI-T UTG2062B Function Generator

Signal Quality on a New Level

The UNI-T UTG2062B sets new standards in signal generation. With its outstanding 16-bit vertical resolution, it delivers four times more amplitude levels than conventional 14-bit generators. The result is exceptionally clean signals with minimal quantization noise – a critical requirement for demanding applications that depend on the accurate reproduction of low-amplitude signals. This device is not only powerful but also completely safe and compliant with all relevant EU standards, ensuring worry-free use in professional and educational environments.

Creativity Without Limits: From Standard to Arbitrary

Whether for circuit design, communications testing, or education, the UTG2062B is your versatile partner. It features over 160 built-in waveforms and 13 different modulation types, from AM to QAM. A special highlight is the innovative Expression Output: simply define complex waveforms as a mathematical equation and have the device generate them directly. Combined with the 16th-order harmonic generation feature, you can effortlessly test amplifier distortion, characterize filters, or simulate specific spectral profiles.

Technical Specifications

Max. Output Frequency 60 MHz (Sine)
Channels 2
Sample Rate 320 MSa/s
Vertical Resolution 16 Bits
Arbitrary Wave Length 16 Mpts
Display 4.3-inch TFT LCD
Modulation Types 13 (AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, QAM)
Interfaces USB, LAN (SCPI support)
Shipping Weight 3.10 kg
Dimensions (W x H x D) 305mm x 230mm x 93mm

Frequently Asked Questions (FAQ)

The standout feature is its 16-bit resolution. It provides significantly higher signal fidelity and lower noise than the common 14-bit generators in this segment, which is essential for precise measurements.

It is ideal for education and training, circuit design and validation, communications testing, and automated production tests thanks to its SCPI programmability.

The package includes the instrument, a power cord, BNC cables, and a USB cable. The PC software for waveform editing and user manuals are available for free download from the UNI-T website.
